Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Trọng tâm nhánh mật ong Aramid linh hoạt | Kích thước ô: | 3.2 ， 4,8, 6.4，9,5mm |
|---|---|---|---|
| độ dày: | 2 mm hoặc chi phí | Kích cỡ: | 1220*600mm hoặc chi phí |
| Tỉ trọng: | 29, 48,96kg/m3 hoặc có thể thay đồ | Thuận lợi: | Siêu nhẹ |
| Nguyên vật liệu: | Giấy sợi aramid | Màu sắc: | màu nâu |
| Bưu kiện: | Vỏ gỗ dán | Ứng dụng: | Vận chuyển đường sắt, sản phẩm thể thao hoặc khác |
| Làm nổi bật: | flexible aramid honeycomb core,perforated plum shaped grid,density 56 honeycomb core |
||

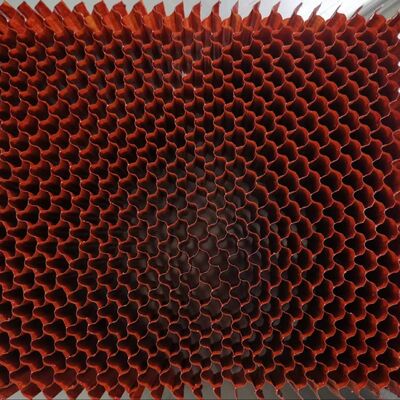

Density 56 Flexible Aramid Honeycomb Core Plum Shaped Perforated Grid
1. Descriptions:
Flexible aramid honeycomb core is a core material with a plum blossom structure, widely used in aerospace and industrial fields. Phenolic resin has been used as a reinforcing material in the production of aramid honeycomb cores. With the continuous improvement of mechanical properties of aramid paper honeycomb cores in certain fields, the performance indicators of aramid paper honeycomb core products are gradually improving to better meet the requirements of aerospace and industrial fields.
2. Specifications:
| Specifications |
Cell size (mm/inch) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
|
| Commercial Grade Flexible Aramid Honeycomb Core | ||||||
| BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 | |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 | |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 | |
| BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 | |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 | |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 | |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 | |
| BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 | |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 | |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 | |
| BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 | |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 | |
| Aerospace Grade Aramid Honeycomb Core | ||||||
| BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 | |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 | |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 | |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 | |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 | |
| BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 | |
| BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
3. Flexible Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on

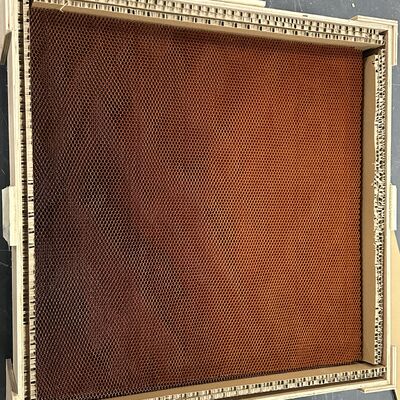

5. Flexible Aramid honeycomb core of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, it is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Exhibition show
8. FAQ
Q1. What is Flexible aramid honeycomb core usd for?
A: Flexible Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of flexible aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of flexible aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
