Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Bảng tổ ong nhôm | Kích cỡ: | 1000*2200mm hoặc tùy chỉnh |
|---|---|---|---|
| chiều dài bên: | 4, 5, 6, 7, 8，10mm hoặc có thể tùy chỉnh | Tấm nhôm dày: | 0.8，0,7, 0,5, mm hoặc có thể tùy chỉnh |
| Bảng trên và dưới: | Tấm nhôm hoặc tùy chỉnh | Xử lý bề mặt: | Lớp phủ PE |
| Vật liệu cốt lõi: | Lõi nhôm tổ ong | Độ dày lá: | 0,2 ， 0,1，0,08, 0,07, 0,06, 0,05mm |
| Nguyên vật liệu: | Al3003 và Al5052 | Màu sắc: | Có thể tùy chỉnh |
| độ dày: | 12, 10, 9, 8, 5 mm hoặc có thể tùy chỉnh | Lợi thế: | Trọng lượng nhẹ, độ bền cao |
| Làm nổi bật: | PVDF aluminum honeycomb panel,outdoor shading honeycomb panel,aluminum honeycomb panel with PVDF coating |
||

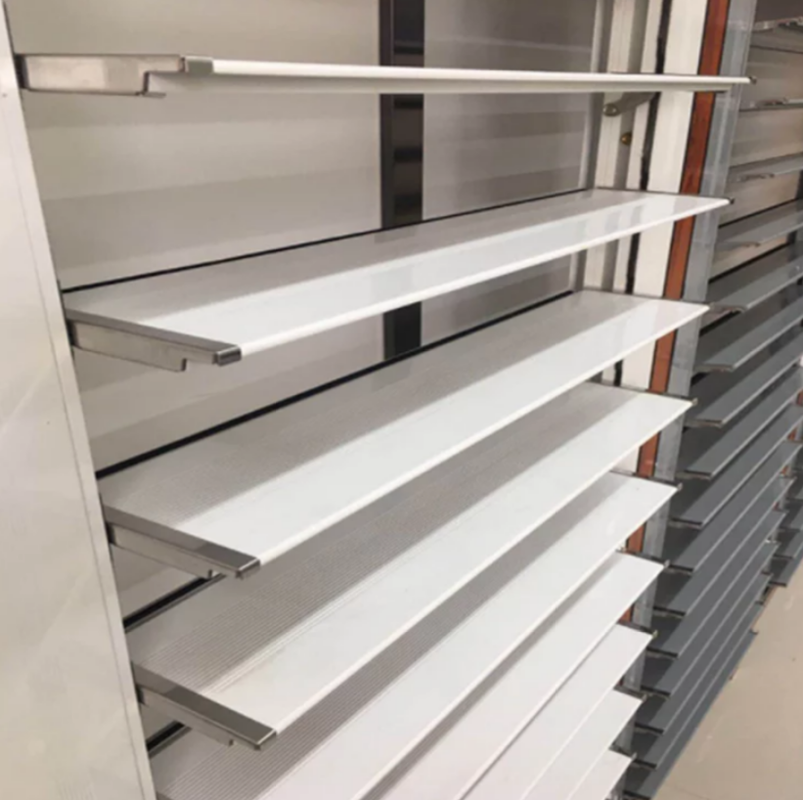

Application Of PVDF Aluminum Honeycomb Panel In Outdoor Shading System
1. Descriptions:
The design of aluminum honeycomb panel outdoor shading system not only needs to prevent direct sunlight from entering the room, but also needs to consider avoiding the adverse effects of sunlight scattering and radiation. Its design and layout must meet the needs of window lighting and ventilation, while ensuring that it does not affect the indoor and outdoor landscape, striving to achieve a harmonious unity between shading function and architectural design. The design of building sunshade louvers presents a regular repetitive variation, resulting in a gradual aesthetic effect.
Its main advantages include outdoor sunshade products covering vertical and horizontal fixed, intelligent control, sunshade canopy products, sunshade flap products, BIPV products, etc., meeting various application scenarios and customer needs.
2. Specifications:
| PE aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. Aluminum honeycomb panel has several advantages:
Corrosion resistance: the surface of aluminum honeycomb panel is treated with epoxy fluorocarbon, which has strong corrosion resistance. There are no pinholes, cracks, and foam after 48 hours of salt spray. It is suitable for long-term outdoor use.
Fire resistance: The surface of the aluminum honeycomb panel is made of aluminum plate, and the core material is hexagonal aluminum honeycomb core. The raw material is aluminum alloy, which has good fire resistance and meets the requirements of fire safety.
Environmentally friendly and harmless: Aluminum honeycomb panels are mainly made of aluminum alloy and do not contain any harmful substances or produce any harmful gases. They are 100% recyclable and reusable environmentally friendly decorative building materials
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Outdoor Shading System
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. Aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: PE aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: PE aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: PE aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
