Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Bảng tổ ong nhôm | Kích cỡ: | 1000*2200mm hoặc tùy chỉnh |
|---|---|---|---|
| chiều dài bên: | 4, 5, 6, 7, 8，10mm hoặc có thể tùy chỉnh | Tấm nhôm dày: | 0.8，0,7, 0,5, mm hoặc có thể tùy chỉnh |
| Bảng trên và dưới: | Tấm nhôm hoặc tùy chỉnh | Xử lý bề mặt: | Lớp phủ PE |
| Vật liệu cốt lõi: | Lõi nhôm tổ ong | Độ dày lá: | 0,2 ， 0,1，0,08, 0,07, 0,06, 0,05mm |
| Nguyên vật liệu: | Al3003 và Al5052 | Màu sắc: | Có thể tùy chỉnh |
| độ dày: | 12, 10, 9, 8, 5 mm hoặc có thể tùy chỉnh | Lợi thế: | Trọng lượng nhẹ, độ bền cao |
| Làm nổi bật: | anodized aluminum honeycomb panel,outdoor shading honeycomb panel,aluminum honeycomb panel with warranty |
||

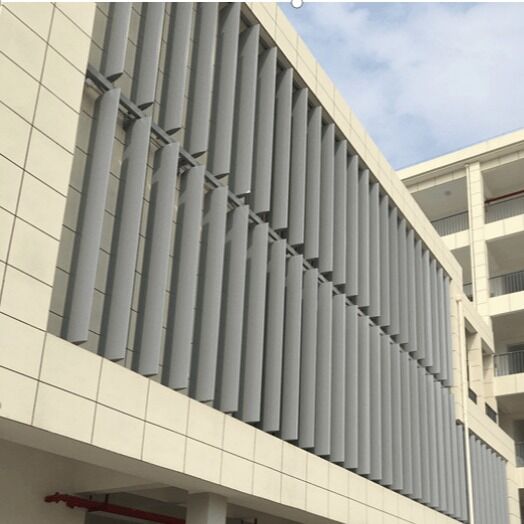

Anodized Aluminum Honeycomb Panel For Outdoor Shading System
1. Descriptions:
Building sunshade products are actually a broad concept, with different classification forms based on different dimensions. Our company classifies sunshade products according to their activity, and mainly divides them into:
Fixed external sunshade
The position and angle cannot be adjusted, and it is fixed for long-term installation.
Common forms include: horizontal sunshade, vertical sunshade, integrated sunshade (horizontal+vertical), barrier sunshade, etc.
Suitable for specific orientations (such as horizontal for south direction and baffle for east/west direction).
Active external sunshade
It can be adjusted manually or automatically to adjust the angle, unfold/retract, and flexibly balance shading and lighting.
The main types include: sunshade roller blinds, activity blinds, sunshades, sunshade screens, intelligent canopies, etc
Derivative sunshade products
Intelligent transformation sunshade products that can achieve different performance effects on the exterior facade through intelligent control
Building shading products that can achieve building photovoltaic integration (BIPV), etc
2. Specifications:
| Aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. Aluminum honeycomb panel has several advantages:
Light weight and good pressure resistance: The density of aluminum honeycomb panel is about 1/5 of that of general metals, but its rigidity is several times that of other materials. It can withstand large pressure and impact loads, has strong seismic resistance, and is not easily deformed.
Sound insulation and thermal insulation performance: Aluminum honeycomb panels have excellent sound absorption, sound insulation, and thermal insulation properties due to their unique honeycomb core structure. The honeycomb cores inside the aluminum honeycomb panel are divided into numerous enclosed compartments, which block air circulation and effectively block sound waves and heat, thereby achieving the effects of sound absorption, sound insulation, heat insulation, and thermal insulation of the aluminum honeycomb panel.
Multiple colors and decorative effects: Aluminum honeycomb panels not only have diverse coatings, but also a wide range of colors. Coatings include fluorocarbon roller coating, polyester spraying, and other methods. In addition to solid colors, there are also metallic colors, imitation wood grain, stone grain, and other colors to choose from, with beautiful shapes that meet different needs.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Outdoor Shading System
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. Aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
